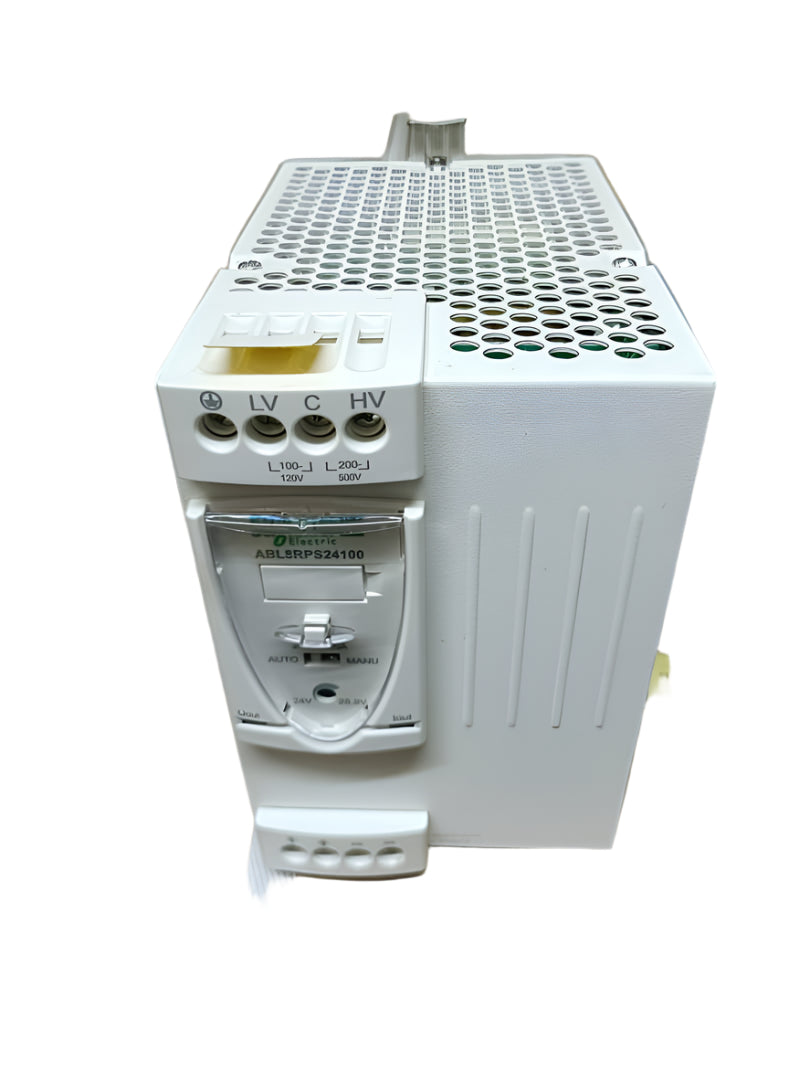

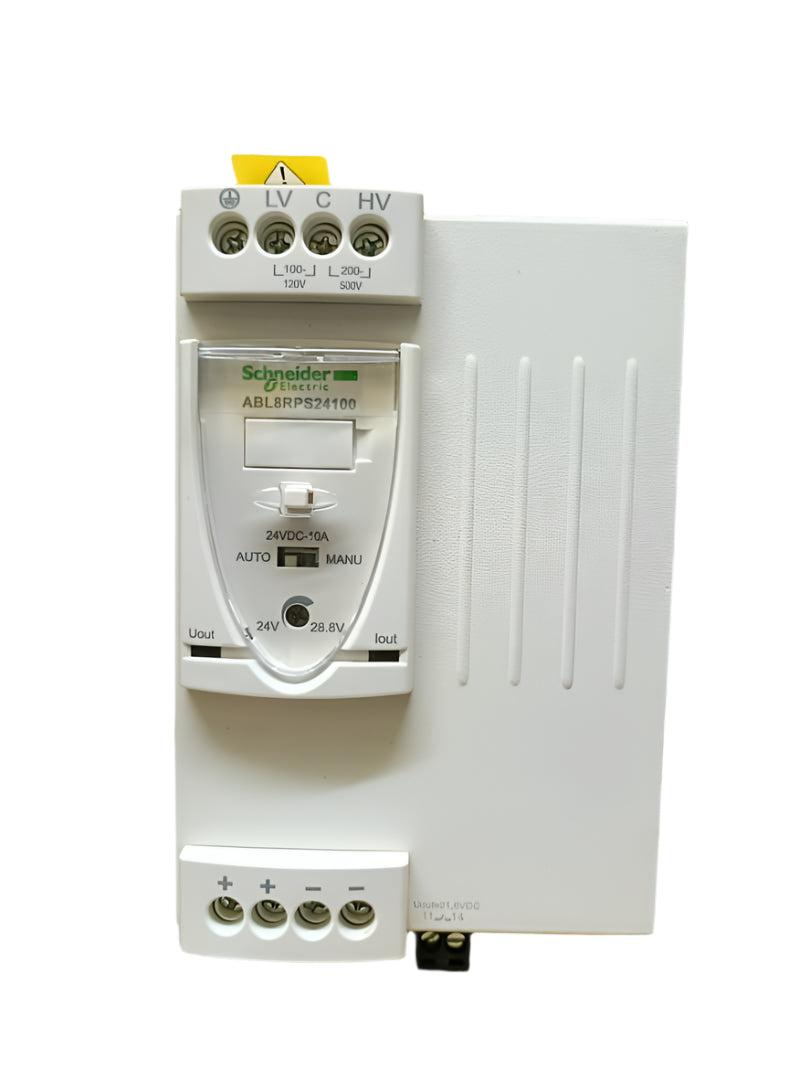

Schneider Power Supply ABLO8 RPS24100 Raiman

Schneider Power Supply ABLO8 RPS24100 Raiman

Nominal input voltage : 100...120 V AC single phase, terminal(s): N-L1
                                       200...500 V AC phase to phase, terminal(s): L1-L2

Rated power in W : 240 W

Output voltage : 24 V DC

Power supply output current : 10 A

Permissible temporary current boost : 1.5 x In (for 4 s)

Input voltage limits : 170...550 V AC
                                  85...132 V AC

Inrush current : 30 A

Power factor : 0.68 at 240 V AC
                       .69 at 120 V AC

Efficiency : 87 %

Output voltage adjustment : 24...28.8 V adjustable

Power dissipation in W : 31 W

Depth : 145 mm

Height : 125 mm

Width : 86 mm
